Viper Sectional Bottom Door Seal

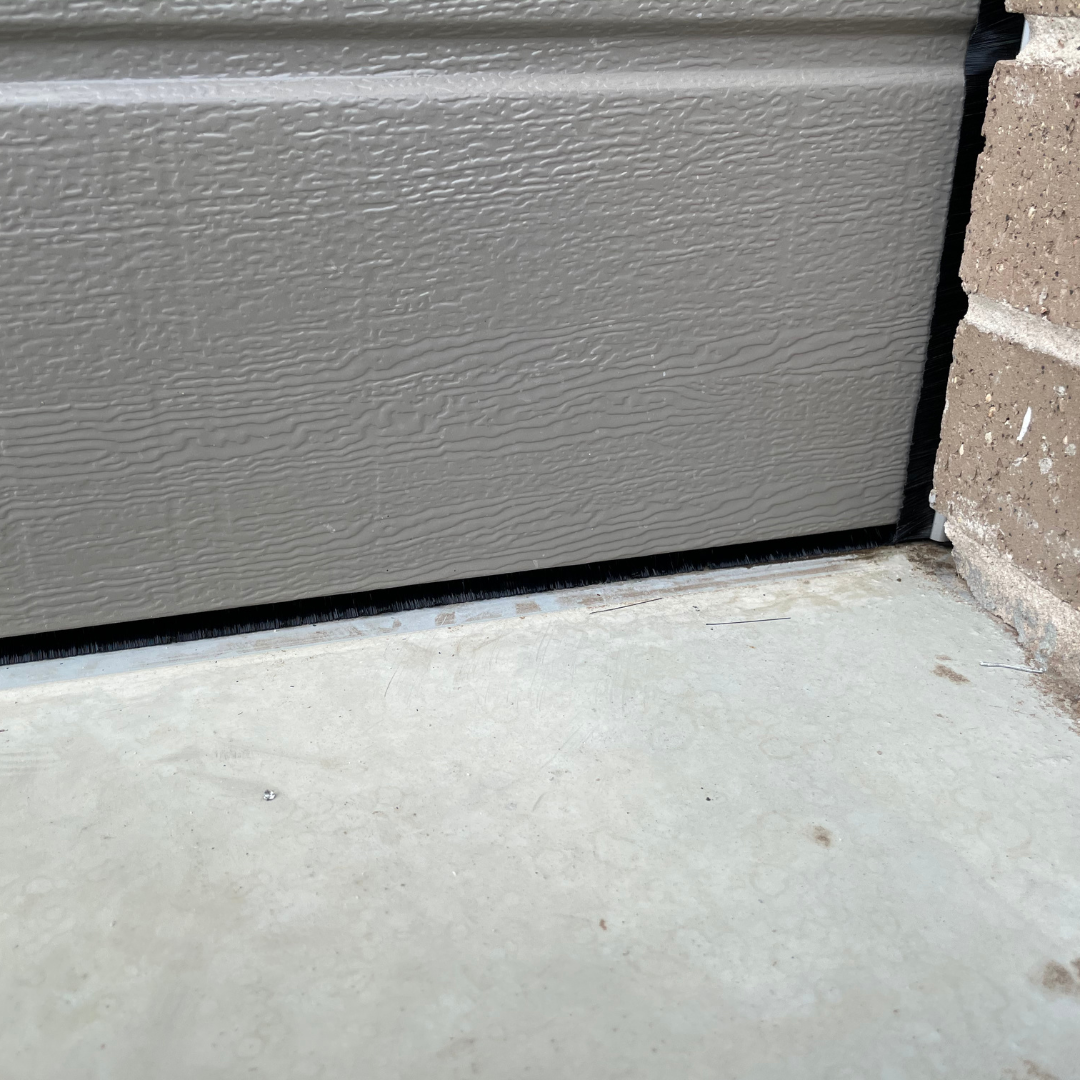

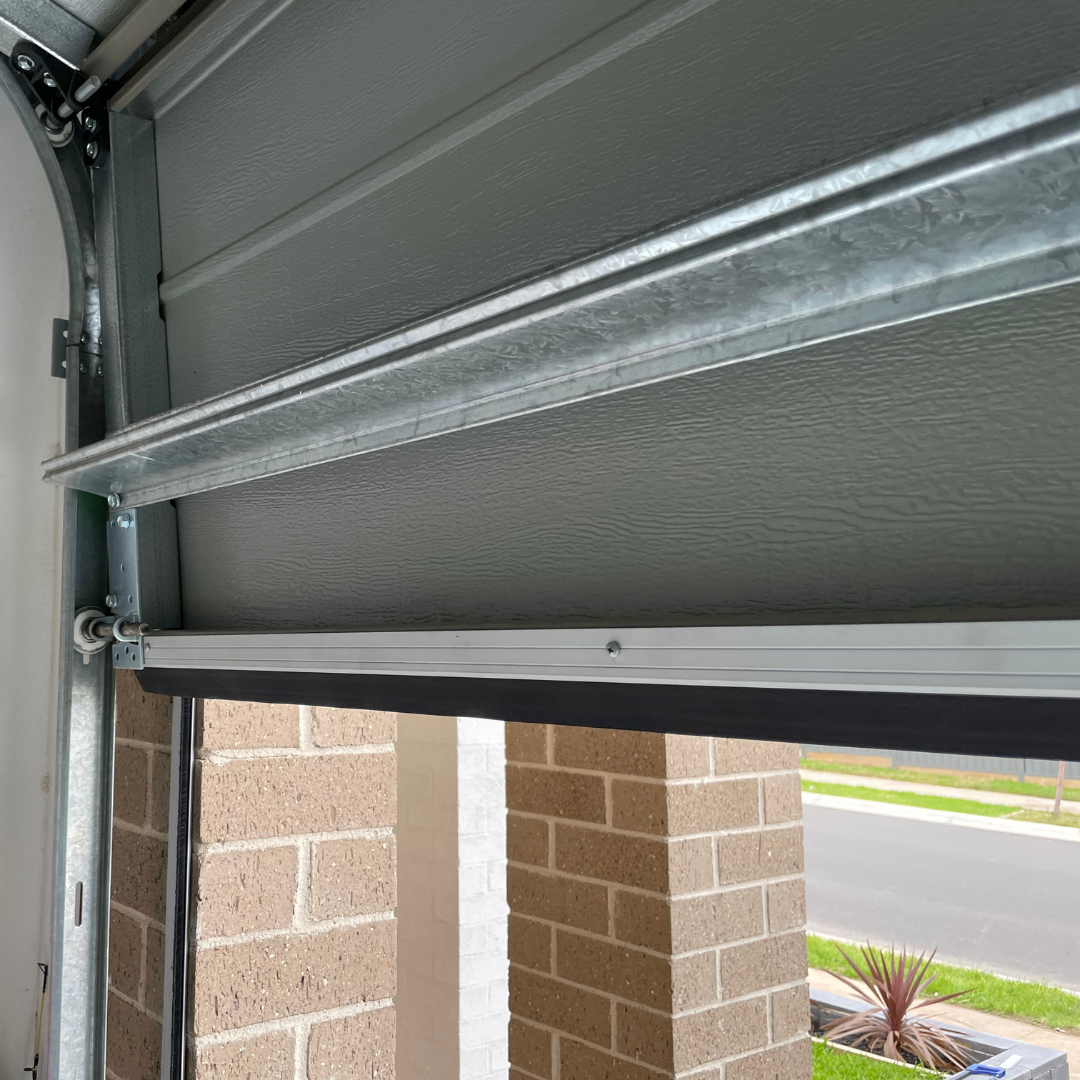

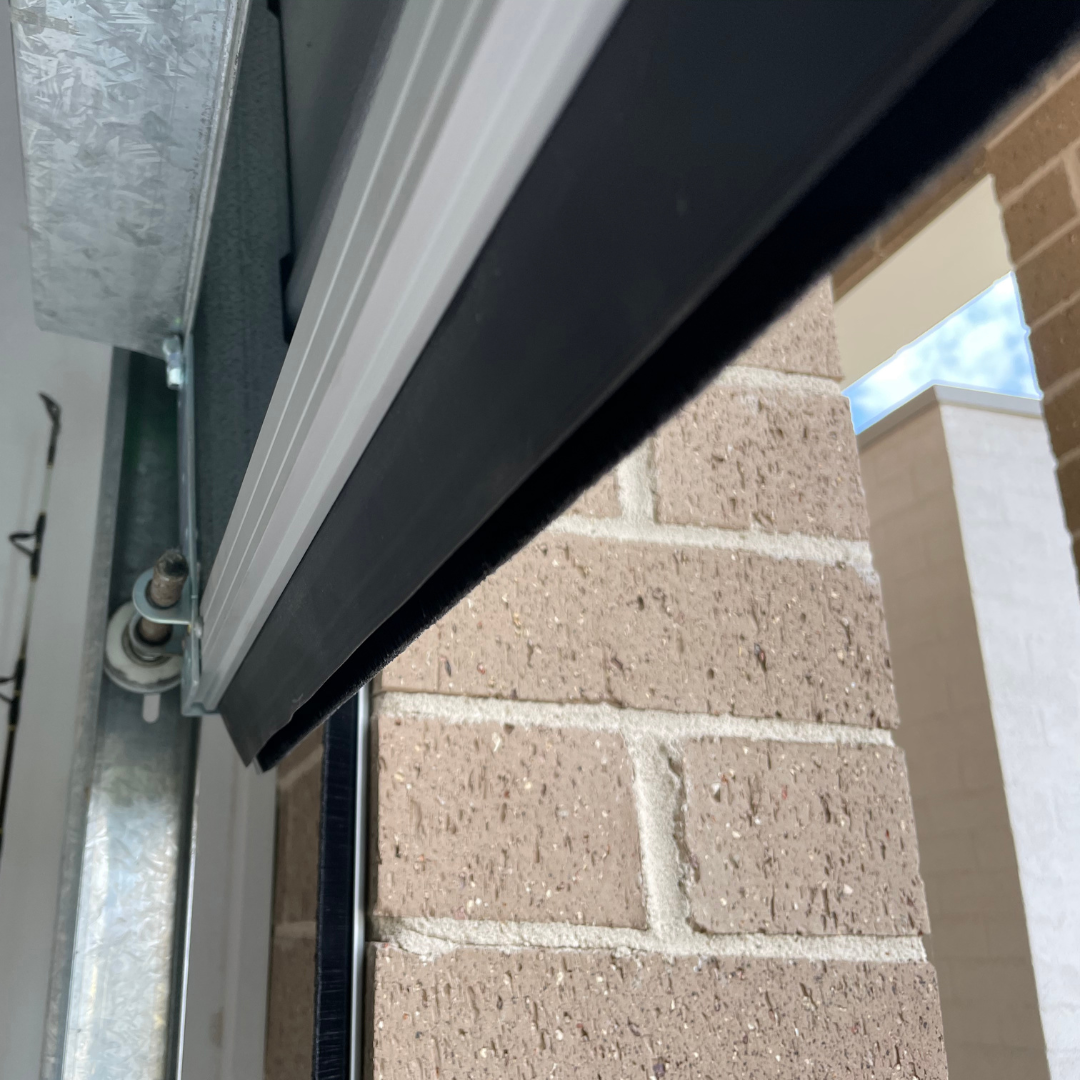

Cleverseal Viper Sectional Bottom of Door Seal is cleverly designed specifically for sectional doors, to close the gaps of out of level floors or replace old cracked rubber seals at the bottom of your door without changing the appearance. Viper is a rear mounted bottom seal, that is installed on the inside face of the Sectional Overhead doors.
Replace that short-term rubber seal that cracks over time, with our heavy-duty Viper seal that is designed for quick and easy installation to the inside bottom of the garage door.

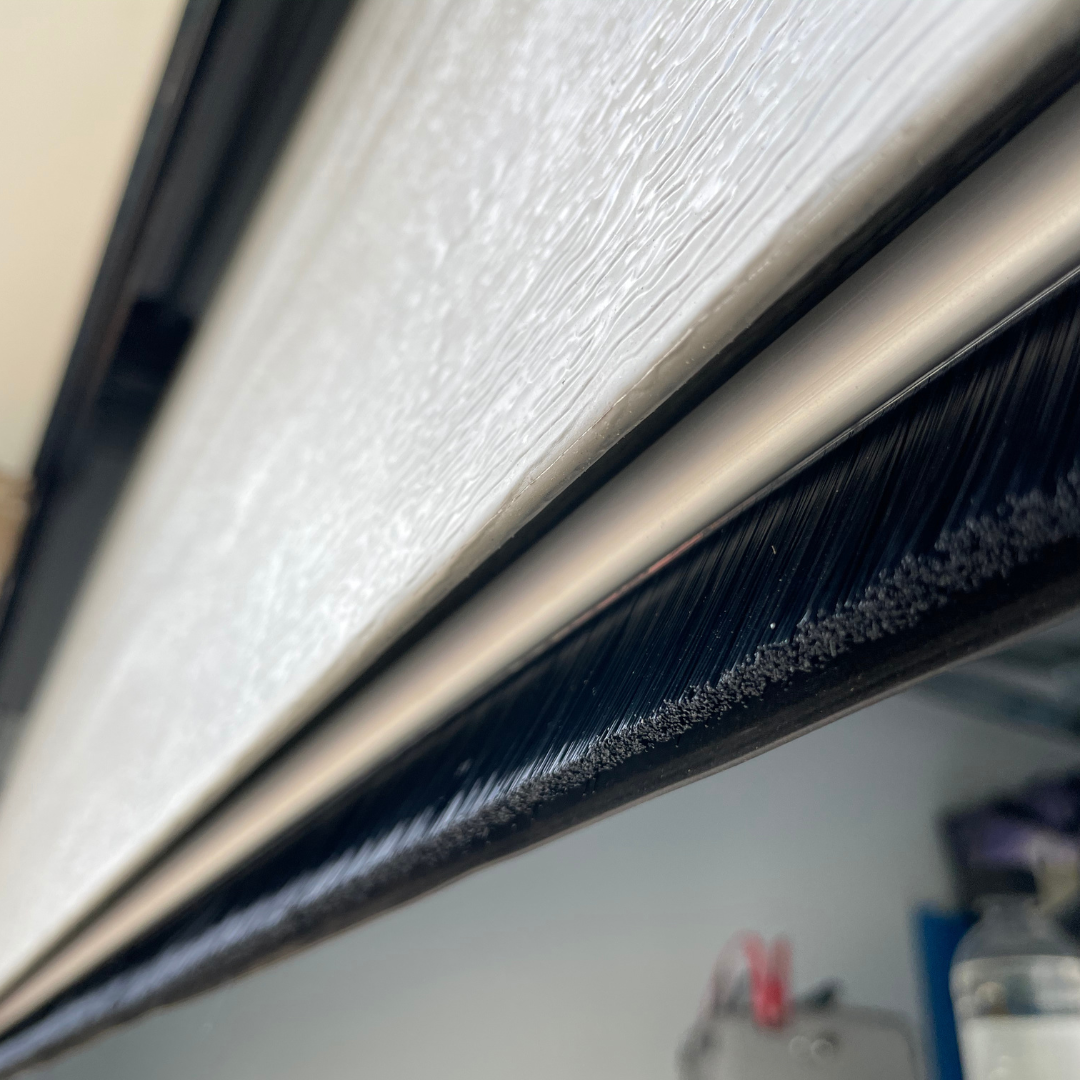

Viper Sectional Bottom of Door Seal is made of a hard-wearing aluminium carrier with two seal barriers, UV stabilised bristle brush to inhibit dust, insects and rodents and behind that is a stabilised flexible santoprene blade to deflect water.
Benefits of Cleverseal Viper Sectional Bottom Door Seal:
- Stop dust, draughts, pests, bushfire embers, smoke, driving rain, excess water & coastal corrosion
- Not only will this garage door weather seal help keep out moisture, debris and rodents, it'll help make your garage more energy efficient and will save you money on your power bill!
- Hard wearing aluminium carriers
- Consists of a combination of both bristle brush and a blade to conform to uneven floors
- Available in either standard, or flame-retardant bristle brush seals to help delay the onset of fire
- A complete DIY sealing kit package that is fully equipped and includes pre-cut lengths for easy installation and fixings for quick and easy application with instant results
- Designed, developed and manufactured in Australia
- 5-year warranty
Not sure if this is the right product for you? Contact our sales team to discuss the best solution.
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 2500mm |
|---|---|
| SKU | CDV2540B-WEB |
| Maximum Installed Product Dimensions | 2500mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 2600mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Dust |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 1 | 2500mm aluminium carrier |
|---|---|
| 1 | 2500mm – 40mm Dust Bristle Brush |
| 1 | flexible santroprene blade |
| fixings |
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 3000mm |
|---|---|
| SKU | CDV3040B-WEB |
| Maximum Installed Product Dimensions | 3000mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 3100mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Dust |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 1 | 3000mm aluminium carrier |
|---|---|
| 1 | 3000mm – 40mm Dust Bristle Brush |
| 1 | flexible santroprene blade |
| fixings |
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 5000mm |
|---|---|
| SKU | CDV5040B-WEB |
| Maximum Installed Product Dimensions | 5000mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 2600mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Dust |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 2 | 2500mm aluminium carrier |
|---|---|
| 2 | 2500mm – 40mm Dust Bristle Brush |
| 1 | flexible santroprene blade |
| fixings |
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 5500mm |
|---|---|
| SKU | CDV5540B-WEB |
| Maximum Installed Product Dimensions | 5500mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 3100mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Dust |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 1 | 2500mm + 3000mm aluminium carriers |
|---|---|
| 1 | 2500mm + 3000mm – 40mm Dust Bristle Brush |
| 1 | flexible santroprene blade |
| fixings |
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 6000mm |
|---|---|
| SKU | CDV6040B-WEB |
| Maximum Installed Product Dimensions | 6000mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 3100mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Dust |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 2 | 3000mm aluminium carriers |
|---|---|
| 2 | 3000mm – 40mm Dust Bristle Brush |
| 1 | flexible santroprene blade |
| fixings |
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 7500mm |
|---|---|
| SKU | CDV7540B-WEB |
| Maximum Installed Product Dimensions | 7500mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 2600mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Dust |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 3 | 2500mm aluminium carrier |
|---|---|
| 3 | 2500mm – 40mm Dust Bristle Brush |
| 1 | flexible santroprene blade |
| fixings |
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 2500mm |
|---|---|
| SKU | CFV2540B-WEB |
| Maximum Installed Product Dimensions | 2500mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 2600mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Flame retardant |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 1 | 2500mm aluminium carrier |
|---|---|
| 1 | 2500mm – 30mm Flame Bristle Brush |
| 1 | flexible santroprene blade |
| fixings |
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 3000mm |
|---|---|
| SKU | CFV3040B-WEB |
| Maximum Installed Product Dimensions | 3000mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 3100mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Flame retardant |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 1 | 3000mm aluminium carrier |
|---|---|
| 1 | 3000mm – 30mm Flame Bristle Brush |
| 1 | 3000mm flexible santroprene blade |
| 1 | 3000mm cover strip |
| 20 | fixings |
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 5000mm |
|---|---|
| SKU | CFV5040B-WEB |
| Maximum Installed Product Dimensions | 5000mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 2600mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Flame retardant |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 2 | 2500mm aluminium carrier |
|---|---|
| 2 | 2500mm – 30mm Flame Bristle Brush |
| 1 | 5000mm flexible santroprene blade |
| fixings |
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 5500mm |
|---|---|
| SKU | CFV5540B-WEB |
| Maximum Installed Product Dimensions | 5500mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 3100mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Flame retardant |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 1 | 2500mm & 3000mm aluminium carriers |
|---|---|
| 1 | 2500mm & 3000mm – 40mm Dust Bristle Brush |
| 1 | flexible santoprene blade |
| fixings |
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 6000mm |
|---|---|
| SKU | CFV6040B-WEB |
| Maximum Installed Product Dimensions | 6000mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 3100mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Flame retardant |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 2 | 3000mm aluminium carriers |
|---|---|
| 2 | 3000mm – 40mm Dust Bristle Brush |
| 1 | flexible santoprene blade |
| 20 | fixings |
Product Specifications
| Model Name | Viper Sectional Bottom Door Seal – 7500mm |
|---|---|
| SKU | CFV7540B-WEB |
| Maximum Installed Product Dimensions | 7500mm |
| Will close the gaps of uneven floor surfaces | Up to 30mm |
| Packaging | 3100mm tube |
| Aluminium | anodised |
| Dual inserts | |
| Bristle brush UV Stablized | YES |
| Insert | UV Stabilised flexible santoprene Blade |
| Brush Type | Flame retardant |
| Installation Required | Yes |
| Warranty | 5 years |
What's Included
| 3 | 2500mm aluminium carrier |
|---|---|
| 3 | 2500mm – 40mm Flame Bristle Brush |
| 1 | flexible santroprene blade |
| fixings |
Q: Will keep it out snakes, mice, cockroaches, spiders?
A: Yes, Cleverseal Garage Door Bristle Brush seals will keep pests out as they do not like the bristle brush rubbing feeling against them.
Q: : Do I need to remove the existing rubber seal to install Viper?
A: Yes, you will need to remove your old rubber seal to install Viper, for more information visit our installation manual.
Q: Will Viper keep leaves and rain coming under my garage door?
A: Yes, Cleverseal Viper bottom of door seal will close the gaps of uneven floor surfaces that let in rain, leaves, dust, wind and pests.
Q: Will UV rays damage Viper?
A: Cleverseal Viper incorporates two seals an outer UV stabilised Bristle Brush and an inner UV stabilised flexible santoprene blade, which means that Viper will withstand the harsh Australian conditions and is protected against long-term damage from UV light.
Q: How will the aluminum withstand coastal corrosion from salt spray?
A: The aluminum carrier is ideal in coastal areas as it's anodizsed to reduce corrosion. If exposed to extreme salt spray the aluminum may start to oxidise. You will need to wash with warm soapy water every 1-3 months depending on exposure.
